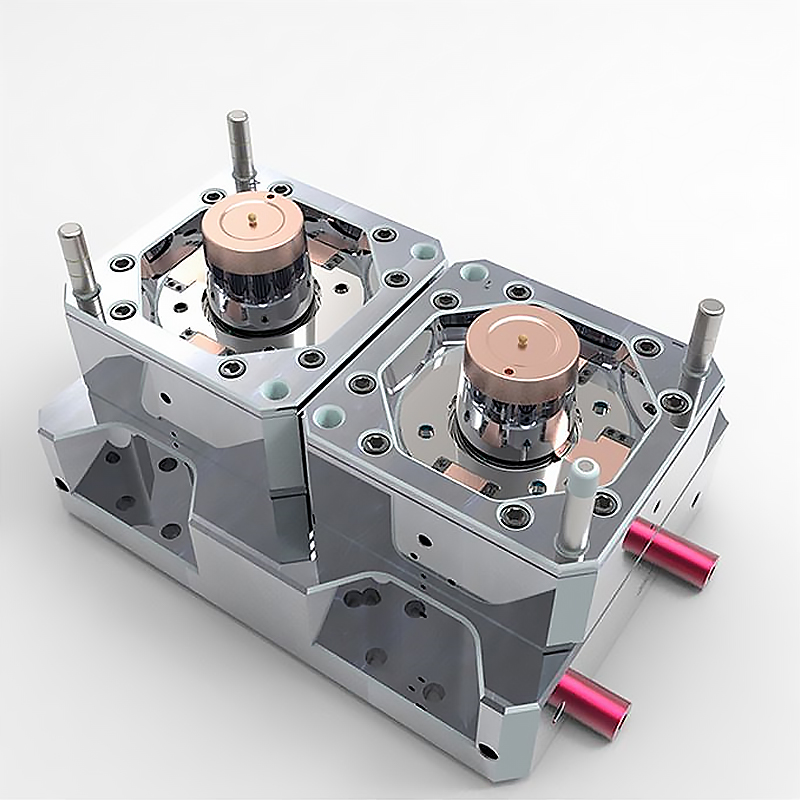

Medication Change Bowl Mold

Medication Change Bowl Mold

Mold Base Steel P20/4CR13/420
Mold Core Steel ASSAB S136 (50-52HRC) Daido Japan S-STAR (50-52HRC) Germany 1.2083/1.2343/1.2344
Hot Runner Needle valve hot runner
Cavity Number 4-chamber, 6-chamber, 8-chamber
Die Life 1 million
Production cycle 15-18s
  • Specification
  • Design Data

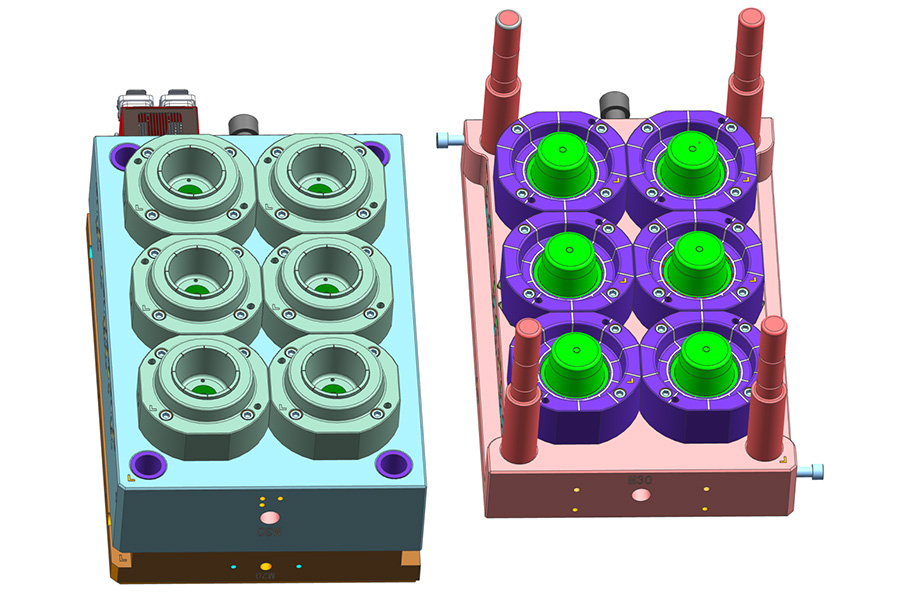

  • 3D Display

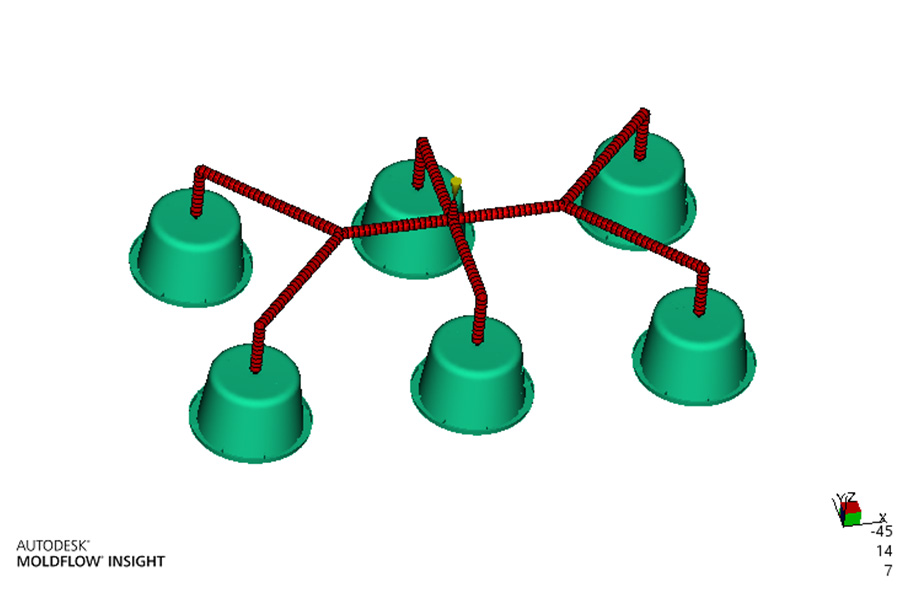

  • Mold Flow Report

  • Advantages:

    1.Using imported equipments to improve the precision of mold part.

    2.The consistency of accessories allows mutual matching, wearing parts replacement and hot nozzle cleaning directly on the injection molding machine.

    3.Free of degraded materials and dust, more eco-friendly.

    4.The mold base and mold core are made of stainless steel.

    5.Customized mold according to customer requirements.

  •
  • Client Name MD
    Analysis System Open One Out 6
    Flow-through system MODO
    Analysis material PP
    Product weight 82.46g
    Mesh type 3D grid
    Analysis type Filling + Holding + Warping
    Analysis Master J
    Date 2023/3/28
    Version V1
    Production cycle Moldflow 2018
Customize Service
Stage1

1. Make product design drawing asper original sample or customer's concept

2. Get machine specs from buyer

3. Plan mold specifications

Stage2

1. Make mold drawings according to the buyer's requirements & machine specs

2. Approval of mold drawings by the buyer's

Stage3

1. Order stell & standard parts and start machining work on core, cavity & mould base

2. Fitting, adjusting, polishing

3. Detailing & Assembly

Stage4

1. Frist trail -to check mold ejection dimensions, fittings and mark correction, corrections

2. Second trail-Detailed inspection, corrections

Stage5

1. Send mold tesign video & photo to the buyer

2. Send trial samples by courier to ccustomer and take approval

3. After do final corrections, do final trial inspection

Stage6

1. Pack molds with wooden case

2. Deliver molds by sea or by air
